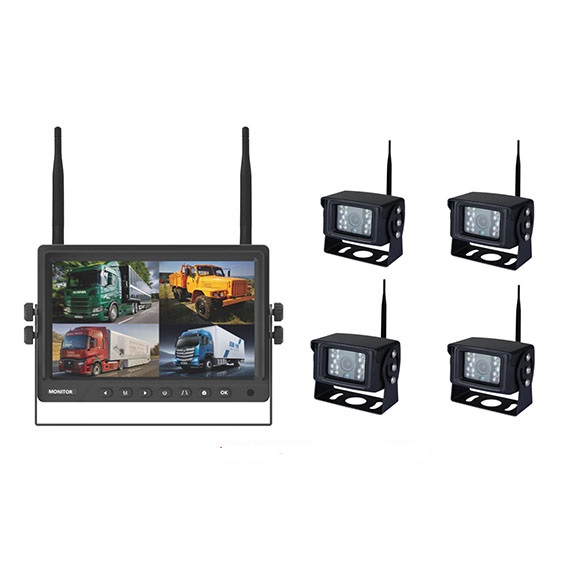

7 inch 1080P Digital Wireless System, support 1~4pcs cameras, MO7038WAQ
  • Description
  • Parameter
  • Case

    • 7 inch 180P digital wireless rear view system

    • Resolution：1024*600

    • Brightness: 500~650cd/m2

    • Resolution: 1080P

    • Power Supply: 12~24V

    • Support 1~4 cameras



  • Product Specification

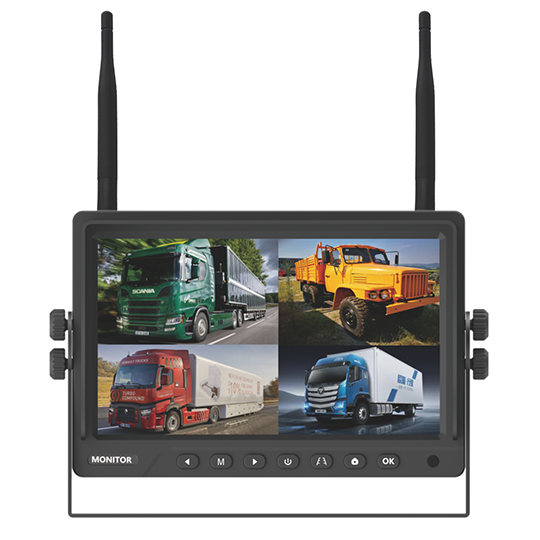

    Model No.MO7038WAQ
    Screen ratio 16:9, 7 inch IPS panel
    Resolution1024*R.G.B*600
    BacklightLED, 500~650 cd/m2
    Viewing angle Full view angle, Hor. L(85°) R(85°) Ver. UP(85°) DOWN(85°)
    Working temperature -20~+70 ºC    85%RH MAX
    Storage temperature -30~+85 ºC    95%RH MAX
    Power supply DC 12-24V
    Delay time 130mS
    Electric currentworking: 12V/300mA; 24V 150mA; Standby: 12V/140mA; 24V/70mA
    Power consumption3.6W
    AV input1~4 channel HD wireless video signal input
    Operating frequency range 2400 ~ 2483.5MHz
    System PAL/NTSC automatically
    Decompression mode H.264
    Receive sensitivity-86dBm(Typ.)@12MHZ QPSK BER<1E-3
    Recording Yes
    Storage Max support 256G
    Transmission distance300m in open area
    Shockproof level 4G
    Power cable waterproof 2P BM connector
    Weight 0.557KG
    Size 181.1mm*124mm*26.5mm


    Wireless camera
    ModelCT556AW
    Image sensorCMOS 1/2.9"
    Pixel1080P 1960*1080 pixels
    Operating frequency range2400-2483.5MHZ
    Transmission distance200M in open area
    SystemPAL/NTSC automatically
    Working temperature -20~+70 ºC    85%RH MAX
    Storage temperature -30~+85 ºC    95%RH MAX
    Power supply DC 12-24V
    Electric current12V/140mA; 24V/70mA
    Power consumption1.3W
    SNR˃48dB
    WaterproofIP69K
    Viewing angleHorizontal viewing Angle 120°
    Transmitting sensitivity-78dBm(Typ.)@12MHZ 16QAM BER<1E-3
    Shell materialBlack aluminium alloy
    Weight0.32KG
