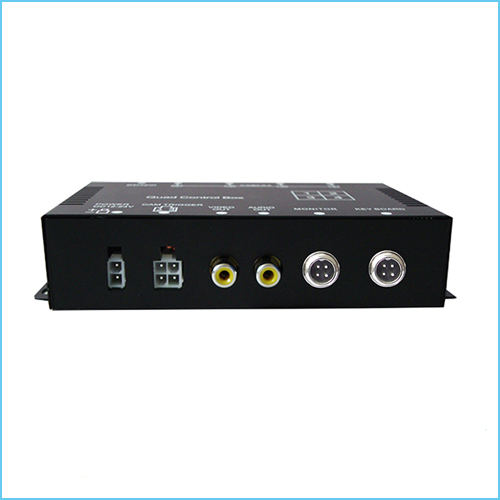

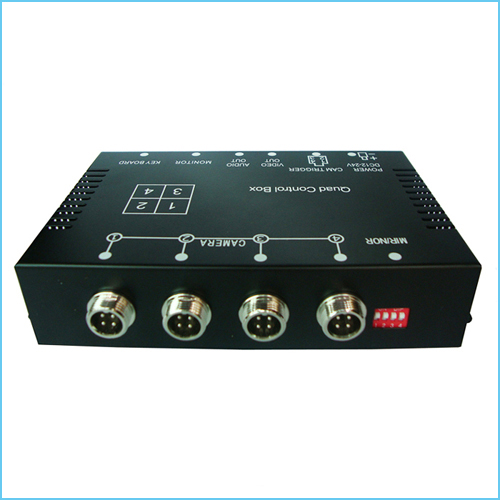

Quad Box QM03
  • Description
  • Parameter
  • Case

  • l 4 way trigger control, can be connected up to 4 cameras, split the screen automatically.

    l Single /Split/ Quad view selectable. Automatically quad view when turn on.

    l The priority is CH1,CH2,CH3,CH4 under the status of triggered.

    l The camera and LCD power supply by quad box, wiring is convenient.

    l Can set On/Off of each channel separately & can be connected to DVR/VCD with RCA port

    l Full screen display, audio switch to corresponding channel audio for output.

    l High/Low voltage protection and overload protection.




  • RecordNo
    Monitor4CH real time
    Video ResolutionD1
    Display mode4\3\2\1
    Operation extension line key control and trigger control
    Power supply9-36V
    Video interfaceAviation Plugs
    Admission powerACC\accumulator
    Power supplysupply power to camera and monitor(<2A)
    Audio4 in 1 out
    Trigger picturetrigger Switch picture
    Power9W\18W
    Dimension155*87*32mm
    Weight340g
